TWU Series Drilling Tools

Send Inquiry +86 18121529016

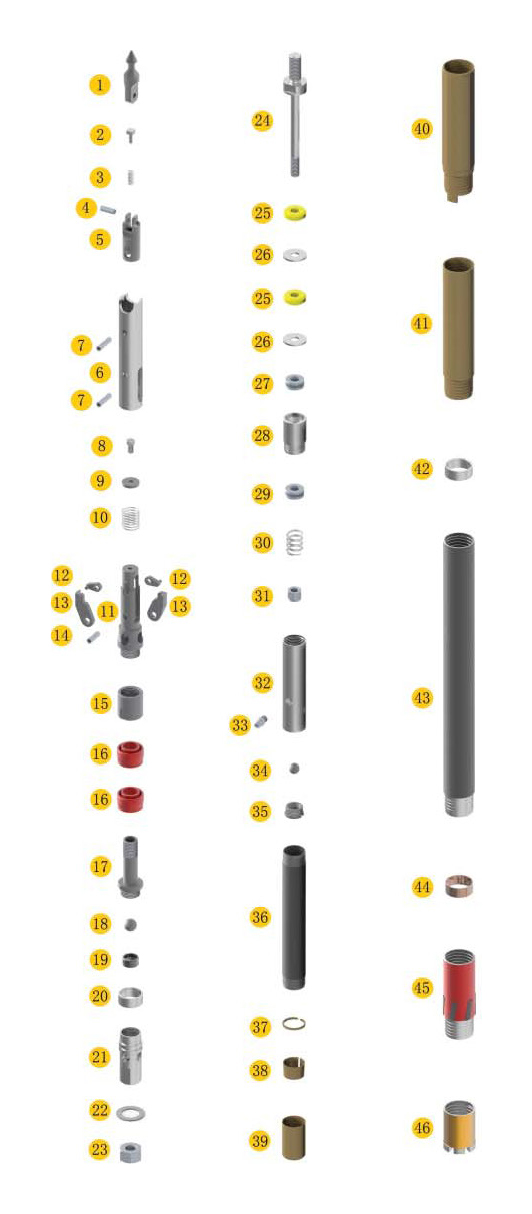

Technical Specifications of BTWU

NO.	Code	Description	Qty
1	BTWU-01	Spearhead Point	1
2	BTWU-02	Detent Plunger	1
3	BTWU-03	Compression Spring	1
4	BTWU-04	Spring Pin 10×28	1
5	BTWU-05	Spearhead Base	1
6	BTWU-06	Latch Retracting Case	1
7	BTWU-07	Spring Pin 10×40	2
8	BTWU-08	3/8"-16UNC×3/4" Bolt	1
9	BTWU-09	Washer	1
10	BTWU-10	Latch Compression Spring	1
11	BTWU-11	Upper Latch Body	1
12	BTWU-12	Link	2
13	BTWU-13	Latch	2
14	BTWU-14	Spring Pin 10×32	1
15	BTWU-15	Latch Body Coupler	1
16	BTWU-16	Pump-in Lip Seal	2
17	BTWU-17	Spindle of Pump-in Lip Seal	1
18	BTWU-18	Stainless Steel Ball φ22	1
19	BTWU-19	Indicator Bushing	1
20	BTWU-20	Landing Shoulder	1
21	BTWU-21	Check Valve Body	1
22	BTWU-22	Washer7/8" Nord-Lock	1
23	BTWU-23	7/8"-9UNC Hex Nut	1
24	BTWU-24	Spindle	1
25	BTWU-25	Shut-off Valve Hard	2
26	BTWU-26	Valve Adjusting Washer	2
27	BTWU-27	Thrust Bearing	1
28	BTWU-28	Spindle Bushing	1
29	BTWU-29	Thrust Bearing	1
30	BTWU-30	Compression Spring	1
31	BTWU-31	5/8"-11UNC Lock Nut	1
32	BTWU-32	InnerTube Cap	1
33	BTWU-33	Hydraulic Grease Fitting	1
34	BTWU-34	Stainless Steel Ball φ22	1
35	BTWU-35	Check Valve Body	1
36	BTWU-36	InnerTube	1
37	BTWU-37	Stop Ring	1
38	BTWU-38	Core Lifter	1
39	BTWU-39	Core Lifter Case	1
40	BTWU-40	Locking Coupling	1
41	BTWU-41	Adaptor Coupling	1
42	BTWU-42	Landing Ring	1
43	BTWU-43	Outer Tube	1
44	BTWU-44	InnerTube Stabilizer	1
45	BTWU-45	Reaming Shell	1
46	BTWU-46	Diamond Core Bit	1

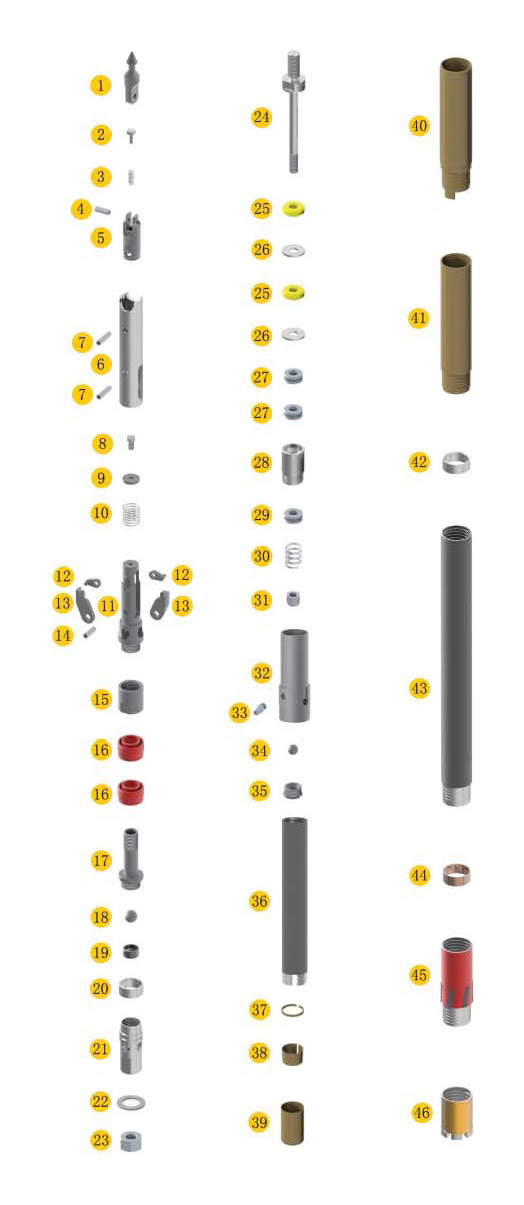

Technical Specifications of NTWU

NO.	Code	Description	Qty
1	NTWU-01	Spearhead Point	1
2	NTWU-02	Detent Plunger	1
3	NTWU-03	Compression Spring	1
4	NTWU-04	Spring Pin 10×28	1
5	NTWU-05	Spearhead Base	1
6	NTWU-06	Latch Retracting Case	1
7	NTWU-07	Spring Pin 10×40	2
8	NTWU-08	3/8"-16UNC×3/4" Bolt	1
9	NTWU-09	Washer	1
10	NTWU-10	Latch Compression Spring	1
11	NTWU-11	Upper Latch Body	1
12	NTWU-12	Link	2
13	NTWU-13	Latch	2
14	NTWU-14	Spring Pin 10×32	1
15	NTWU-15	Latch Body Coupler	1
16	NTWU-16	Pump-in Lip Seal	2
17	NTWU-17	Spindle of Pump-in Lip Seal	1
18	NTWU-18	Stainless Steel Ball φ22	1
19	NTWU-19	Indicator Bushing	1
20	NTWU-20	Landing Shoulder	1
21	NTWU-21	Check Valve Body	1
22	NTWU-22	7/8" Washer7/8" Nord-Lock	1
23	NTWU-23	7/8"-9UNC Hex Nut	1
24	NTWU-24	Spindle	1
25	NTWU-25	Shut-off Valve Hard	2
26	NTWU-26	Valve Adjusting Washer	2
27	NTWU-27	Thrust Bearing	1
28	NTWU-28	Spindle Bushing	1
29	NTWU-29	Thrust Bearing	1
30	NTWU-30	Compression Spring	1
31	NTWU-31	3/4"-10UNC Lock Nut	1
32	NTWU-32	InnerTube Cap	1
33	NTWU-33	Hydraulic Grease Fitting	1
34	NTWU-34	Stainless Steel Ball φ22	1
35	NTWU-35	Check Valve Body	1
36	NTWU-36	InnerTube	1
37	NTWU-37	Stop Ring	1
38	NTWU-38	Core Lifter	1
39	NTWU-39	Core Lifter Case	1
40	NTWU-40	Locking Coupling	1
41	NTWU-41	Adaptor Coupling	1
42	NTWU-42	Landing Ring	1
43	NTWU-43	Outer Tube	1
44	NTWU-44	InnerTube Stabilizer	1
45	NTWU-45	Reaming Shell	1
46	NTWU-46	Diamond Core Bit	1

Technical Specifications of HTWU

NO.	Code	Description	Qty
1	HTWU-01	Spearhead Point	1
2	HTWU-02	Detent Plunger	1
3	HTWU-03	Compression Spring	1
4	HTWU-04	Spring Pin 10×28	1
5	HTWU-05	Spearhead Base	1
6	HTWU-06	Latch Retracting Case	1
7	HTWU-07	Spring Pin 12×70	2
8	HTWU-08	3/8"-16UNC×3/4"Bolt	1
9	HTWU-09	Washer	1
10	HTWU-10	Latch Compression Spring	1
11	HTWU-11	Upper Latch Body	1
12	HTWU-12	Link	2
13	HTWU-13	Latch	2
14	HTWU-14	Spring Pin 12×55	1
15	HTWU-15	Latch Body Coupler	1
16	HTWU-16	Pump-in Lip Seal	2
17	HTWU-17	Spindle of Pump-in Lip Seal	1
18	HTWU-18	Stainless Steel Ball φ22	1
19	HTWU-19	Indicator Bushing	1
20	HTWU-20	Landing Shoulder	1
21	HTWU-21	Check Valve Body	1
22	HTWU-22	Washerl 1/4" Nord-Lock	1
23	HTWU-23	1/4"-7UNC Hex Nut	1
24	HTWU-24	Spindle	1
25	HTWU-25	Shut-off Valve Hard	2
26	HTWU-26	Valve Adjusting Washer	2
27	HTWU-27	Thrust Bearing	2
28	HTWU-28	Spindle Bushing	1
29	HTWU-29	Thrust Bearing	1
30	HTWU-30	Compression Spring	1
31	HTWU-31	1"-8UNC Lock Nut	1
32	HTWU-32	InnerTube Cap	1
33	HTWU-33	Hydraulic Grease Fitting	1
34	HTWU-34	Stainless Steel Ball φ22	1
35	HTWU-35	Check Valve Body	1
36	HTWU-36	InnerTube	1
37	HTWU-37	Stop Ring	1
38	HTWU-38	Core Lifter	1
39	HTWU-39	Core Lifter Case	1
40	HTWU-40	Locking Coupling	1
41	HTWU-41	Adaptor Coupling	1
42	HTWU-42	Landing Ring	1
43	HTWU-43	OuterTube	1
44	HTWU-44	InnerTube Stabilizer	1
45	HTWU-45	Reaming Shell	1
46	HTWU-46	Diamond Core Bit	1

Technical Specifications of TWU Series (Fishing Tool)

NO.	Code	Description	Qty
1	TWU-01	Eye Bolt	1
2	TWU-02	Cable Collar	1
3	TWU-03	Bearing	1
4	TWU-04	Hex Nut	2
5	TWU-05	Cable Swivel Body	1
6	TWU-06	Hydraulic Grease Fitting	1
7	TWU-07	Spirol Shear Pin	1
8	TWU-08	Upper Over-Shot Body	1
9	TWU-09	Hex Nut	1
10	TWU-10	Washer	1
11	TWU-11	Pump-ln Lip Seal	2
12	TWU-12	Seal Seat	1
13	TWU-13	Stainless Steel Ball	1
14	TWU-14	Indicator Bushing	1
15	TWU-15	Lower Latch Body	1
16	TWU-16	Overshot Threaded Adaptor	1
17	TWU-17	Compression Spring	1
18	TWU-18	Lifting Dog	2
19	TWU-19	Retaining Ring	1
20	TWU-20	Washer	1
21	TWU-21	Pin	1
22	TWU-22	Pin	1
23	TWU-23	Safty Pin	1
24	TWU-24	Overshot Head	1
25	TWU-25	Release Tool	1
26	TWU-26	Overshot Assembly	1
