XZKD Drilling Rig Specification
|
Type No. |
XZKD75-3B |
XZKD95-2A |
XZKD95-3A |
XZKD95-4A |
|
Applicable Size |
AQ/BQ/NQ |
BQ/NQ/HQ |
BQ/NQ/HQ |
BQ/NQ/HQ |
|
Motor Rated Power（kw） |
37 |
45 |
55 |
75 |
|
Motor Rated Speed（rpm） |
1480 |
1480 |
1480 |
1480 |
|
Rotation Speed（rpm） |
370-1500 |
380-1200 |
380-1200 |
380-1200 |
|
Power Head Type |
Through Shaft |
Through Shaft |
Through Shaft |
Through Shaft |
|
Max Torque of Power Head（Nm） |
1200 |
1200 |
1700 |
1700 |
|
Axial Feeding Force（kN） |
50 |
65 |
65 |
65 |
|
Axial Pulling Force（kN） |
120 |
160 |
160 |
160 |
|
Power Head Stroke（mm） |
1100 |
1600 |
1600 |
1600 |
|
Body Sliding Stroke（mm） |
500 |
700 |
700 |
700 |
|
Drilling Angle |
0~360 |
0~360 |
0~360 |
0~360 |
|
System Pressure（Mpa） |
25 |
25 |
28 |
32 |
|
Winch Wire Rope Diameter（mm） |
5 |
5 |
5 |
5 |
|
Winch Lifting Force（kN） |
8 |
8 |
10 |
12 |
|
Outline Dimensions |
Main Body（mm） |
2700×1020×1540 |
2900×1330×1570 |
|
Power Unit（mm） |
1520×1050×1240 |
1740×1050×1440 |
|
Control Unit（mm） |
1010×690×1150 |
1010×690×1150 |
|
Weight |
Main Body（kg） |
1345 |
1400 |
1500 |
1500 |
|
Power Unit（kg） |
690 |
850 |
930 |
1080 |
|
Control Unit（kg） |
200 |
200 |
200 |
200 |
Scope of Application
The fully hydraulic tunnel core drill is suitable for exploration drilling in mine tunnels, and can also be used for ground core drilling, railway, tunnel, water conservancy, construction engineering survey, and other industries. Its perfect technical specifications and reliable performance will bring you high efficiency and benefits.
Main Features of Full Hydraulic Tunnel Drilling Rig
1. Driven by an electric oil pump, the motor operates, and the oil cylinder delivers without any tower pulling;
2. The rotary, feeding, pulling, and clamping systems of the drill utilize hydraulic transmission, ensuring smooth operation;
3. Fast drilling speed, capable of drilling at any inclination and position, with strong adaptability.
4. V-shaped guide rails are adopted, ensuring good spindle positioning.
5. Easy to operate, disassemble, and transport.
※ The fully hydraulic tunnel drill is mainly composed of a power vehicle, a main body, an operation console, a rotating device, a drill rod holder, a mud pump, and other components.
※ The main product specifications of the company include: XZKD95-1, XZKD95-2, and XZKD95-3 fully hydraulic tunnel drills.
Main Components of Fully Hydraulic Tunnel Core Drill

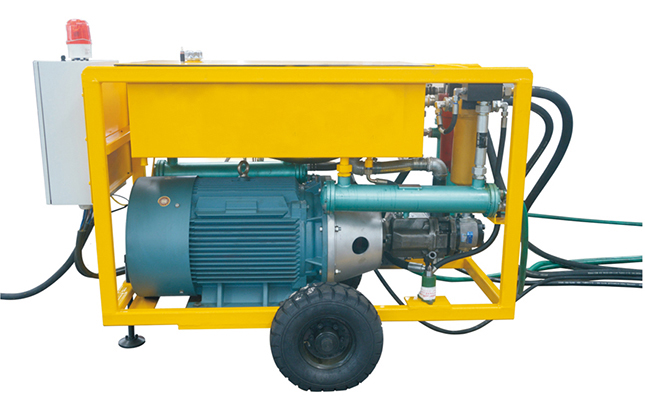

Power car
The power unit is mounted on a small cart with wheels, facilitating easy relocation. During installation, it can also be positioned at a certain distance from the main machine.
The power vehicle is equipped with a high-power motor, a dual pump (the main pump supplies the rotating device, and the auxiliary pump supplies the feed cylinder), an oil filter, an oil cooler, a manual oil filling pump, an electrical control box, etc.

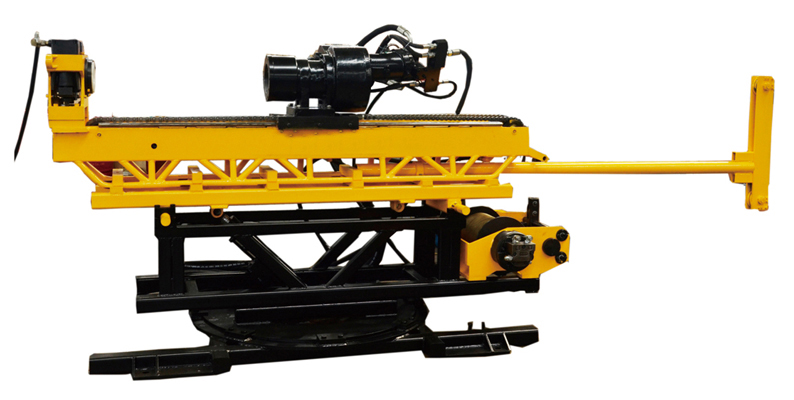

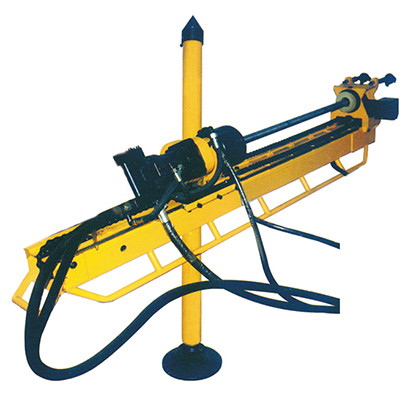

Main Body
The main machine is primarily composed of components such as the bed frame, rotating device, drill rod holder, column, and hydraulic cylinder. It is designed to be easily disassembled and installed. Due to the adoption of a column, drilling at various angles within a range of 0°-360° can be achieved within the tunnel.

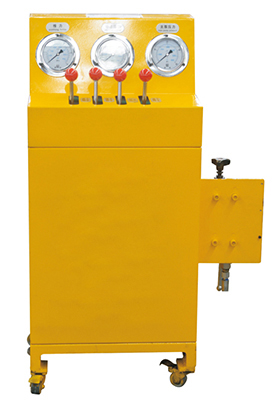

Console table
The operation console is designed to be simple and easy to operate. Workers only need to handle the drill rod and operate the control handle to carry out all drilling tasks. It can achieve automatic feed, with the feed force and feed speed controllable as desired. It can control the synchronous movement of the chuck and drill rod gripper, allowing for convenient assembly and disassembly of the drill rod without the need for a wrench. The dashboard displays system pressure, feed force, and flushing water pressure, greatly improving drilling efficiency.
Rotating device
Each model of drill rig is equipped with its own rotating device, with the main shaft inner diameter being 60mm, 75mm, and 95mm. By replacing the clamps in the chuck, the chuck can grip drill rods of different diameters. The hydraulic motor allows for stepless speed change of the main shaft, and by replacing the gearbox with a 1:2.5 gear pair, it is possible to achieve high speed and high torque drilling.

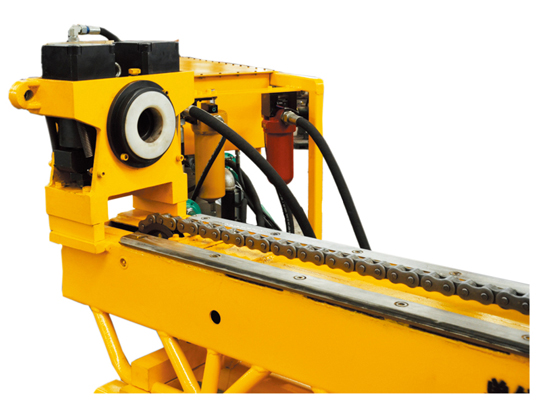

Drill pipe gripper
The action of the drill rod gripper's jaws is synchronized with that of the chuck, with mechanical clamping and hydraulic release. Its characteristic is that even when the prime mover unexpectedly stops rotating, the drill rod can still be firmly clamped, ensuring the safety of drilling upwards.

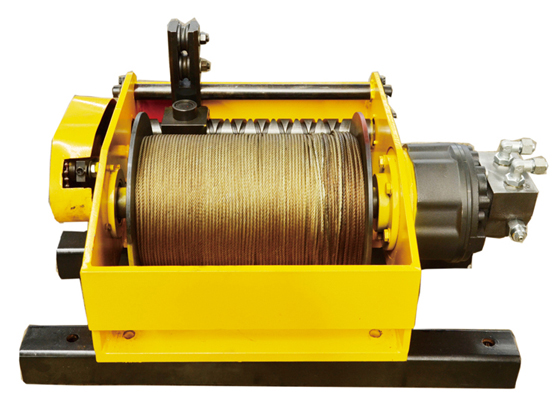

Rope hydraulic winch
The rope hydraulic winch, equipped with hydraulic motor, drum, rope guider, steel wire rope, etc., boasts a simple structure, easy installation and operation, low noise, light weight, and minimal mechanical wear. It is suitable for geological prospecting, coring, and other applications, with a wide range of uses.
