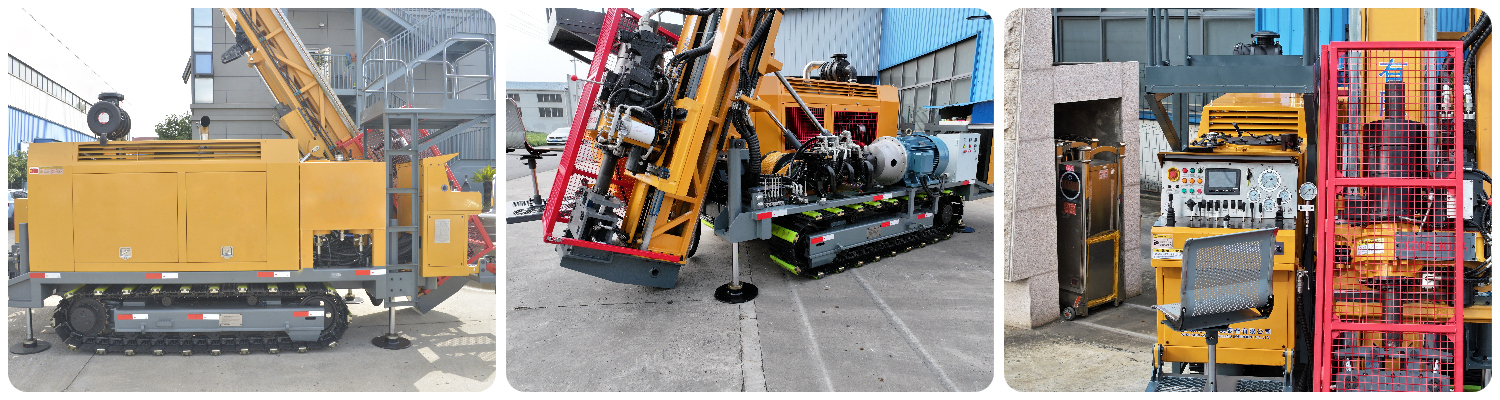

Dual-Purpose Diesel And Electric Full Hydraulic Core Drill XZCR-N18AD
Dual-Purpose Diesel And Electric Full Hydraulic Core Drill XZCR-N18AD
| Drilling Rig Model | XZCR-N18AD | |
| Diesel Engine | Model | Dongfeng Cummins QSB6.7-C240-30 |
| Emission Standard | National III | |
| Displacement | 6.7L, 6-cylinder, Turbocharged | |
| Power | 178kW | |
| Rated Speed | 2200rpm | |
| Electric Motor | Model | YE3-280M-4 |
| Parameter | 95kW | |
| Drilling Capacity | Drill Pipe Specification | Drilling Depth |
| BQ | 2200m | |
| NQ | 1800m | |
| HQ | 1400m | |
| PQ | 1000m | |
| Rotary Head | Maximum Torque | 6400Nm |
| Speed Range | 3-speed Stepless Variable Speed, 0-1250rpm | |
| Spindle Through-hole Diameter | 125mm | |
| Lifting Force | ≥220kN | |
| Feeding Force | ≥112kN | |
| Main Winch | Lifting Capacity | 120kN (Single Rope) |
| Wire Rope Diameter | 20mm | |
| Wire Rope Length | 50m | |
| Lifting Speed | 45m/min | |
| Cable Winch | Lifting Capacity | 15kN (Empty Drum) |
| Wire Rope Diameter | 6mm | |
| Wire Rope Length | 2000m | |
| Lifting Speed | 110m/min | |
| Lower Clamp | Clamping Range | 55.5-118mm (Maximum Hole-opening Diameter: 165mm) |
| Mast | Type | Telescopic Mast |
| Total Mast Height | 10m | |
| Mast Adjustment Angle | 0~90° | |
| Drilling Angle | 45~90° | |
| Feeding Stroke | 3700mm | |
| Mast Slip Stroke | 1120mm | |
| Mud Pump | Model | BWF-250BIV |
| Travel Device | Type | Steel Crawler, Remote-Controlled Self-Propelled |
| Traction Force | 16T | |
| Maximum Travel Speed | 3.5km/h | |
| Maximum Climbing Angle | 30° | |
| Others | Total Weight | 14T |
| Overall Dimensions | 6235×2230×2490mm | |
