Drill Pipe Thread Oil
Drill pipe thread oil is developed based on our company's new formula and is suitable for lubricating and sealing the drill pipe thread parts in geological drilling. Its main functions are:
1. It has lubricity, which can reduce the friction and wear of the thread, and lower the resistance of twisting and loosening the thread;
2. It has film-forming properties and plays a role in sealing, preventing water leakage, and protecting the threads. Drill pipe thread oil is produced using a scientific formula, with a rigorous process and low-temperature and high-temperature tests. It has the characteristics of stable viscosity, good performance, stable and reliable quality, and easy coating. Especially suitable for rope core drilling rods and receivers.

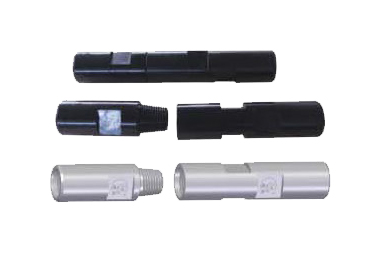

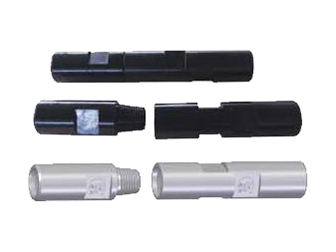

Lock Joint, Drill Pipe Coupling
Description of box and pin: φ57、φ65、φ75、φ121
Description of drilling coupling: φ57、φ65、φ75

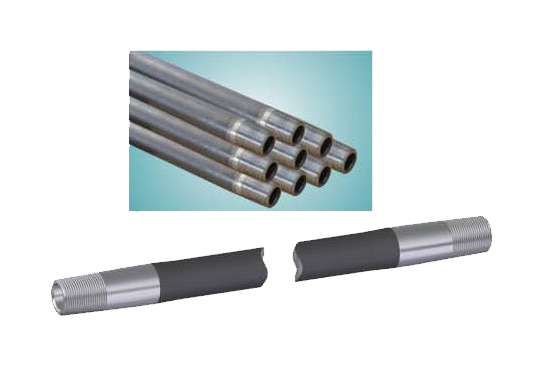

Ordinary Rough Drilling Rod
|
Description |
Size (mm) |
|
Rod |
φ42.4×5 Outer wire（STM-R780） |
|
φ42.4×5 Internal（STM-R780） |
|
φ50×6.5 Outer wire（STM-R780） |
|
φ50×6.5 Outer wire（STM-R780） |
|
φ 60.3×7.1 （STM-R780） |
|
φ73×9.19 （STM-R780） |
|
φ88.9×10 （STM-R780） |

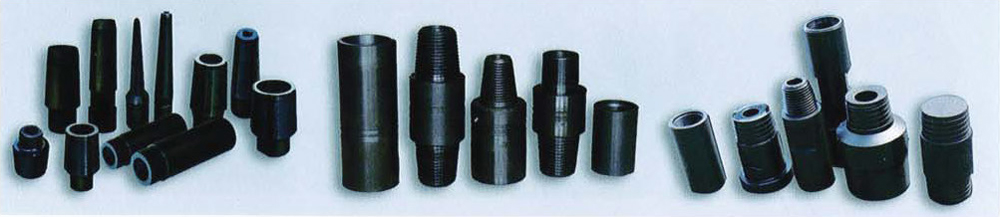

Various Types of Variable Diameter Joints and Accident Handling Tools

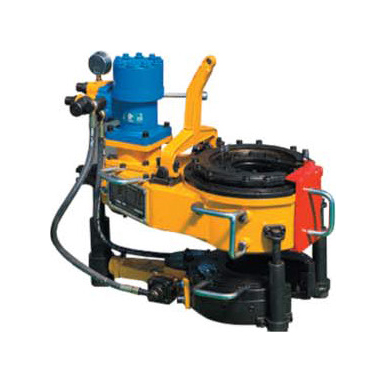

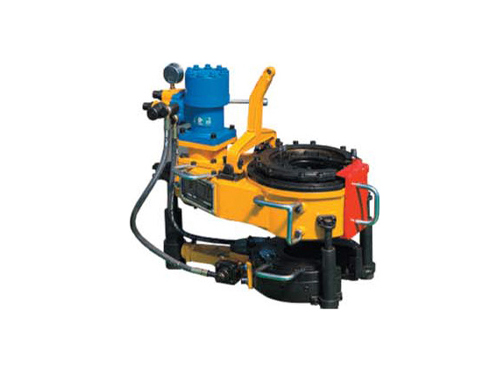

XZ114/6YB Hydraulic Power Pliers
XZL14/6YB hydraulic power tong is a medium-sized power tong used for loading and unloading oil pipe threads in oilfield well repair operations. This power clamp has the following characteristics:
1. The new hydraulic back clamp is paired with the main clamp to form a combination clamp. By operating the manual directional valve on the main clamp, the back clamp automatically synchronously clamps and releases the pipe column, with flexible and reliable movements.
2. The clamp teeth are universal, and the main clamp and back clamp can be replaced with different specifications of jaw plates to clamp different specifications of pipe columns and couplings. The jaw plates are easy to install and remove.
3. The two speed difference is large, with fast speed in high gears and high torque in low gears.
4. The caliper brake mechanism and steering control mechanism are located on the upper part of the caliper, with reliable performance and extremely convenient installation, adjustment, and maintenance.
5. The suspended main clamp floats behind the main clamp, and the rubber hose of the back clamp is connected to the main clamp through a quick change joint. The main clamp and the back clamp are easy to combine and separate for relocation.
6. The back of the pliers can be equipped with a pressure sensing cylinder, which can be directly matched with a torque gauge.
|
Master tong |
|
1 |
Suitable pipe & sizes |
φ73、φ89、φ140mm Oilfield pipe |
|
2 |
Rated torque of high gear |
1.5kN • m |
|
3 |
Rated丨orque of lower gear |
6.0kN • m |
|
4 |
High gear rotated speed |
85r/min |
|
5 |
Low gear rotated speed |
20r/min |
|
6 |
Opening dimension |
118mm |
|
7 |
Weight |
150kg |
|
Backup tong |
|
1 |
Suitable pipe & sizes |
φ73、φ89、φ140mm Pipe coupling |
|
2 |
Opening dimension |
145mm |
|
3 |
Weight |
70kg |
|
Overall dimensions |
750×500×600mm |
|
Rated system pressure |
11MPa |
|
Rated oil supply |
100L/mln |

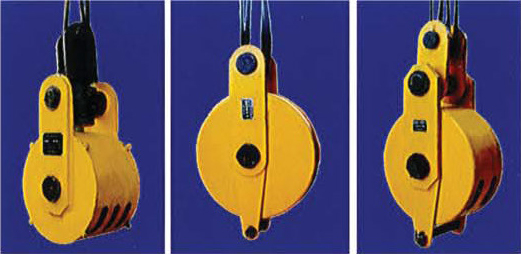

Drilling Tower And Pulley
Technical specifications
|
Specifications |
Gin block |
Double block |
Treble block |
|
Number of sheave |
1 round |
2 round |
3 round |
|
Rated loading capacity |
6000 kg |
12000 kg |
18000 kg |
|
Max. loading capacity of one sheave |
10000 kg |
10000 kg |
10000 kg |
|
Max. loading capacity of block |
10000 kg |
20000 kg |
30000 kg |
|
Specification of wire line |
16-20 mm |
16-20 mm |
16-20 mm |
