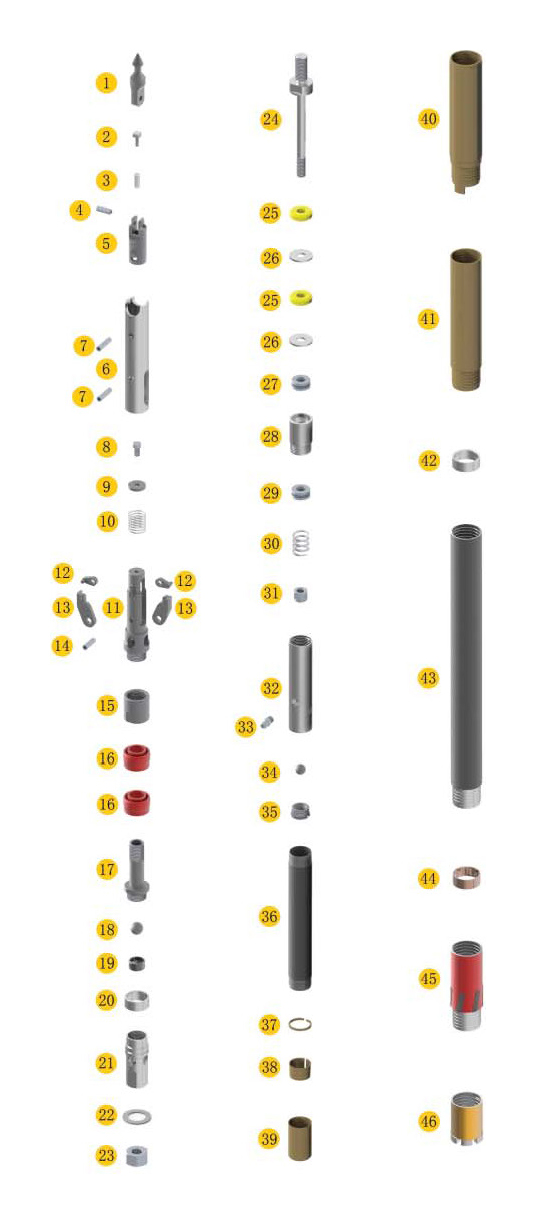

NO. |
Code |
Description |
Qty |
|
1 |
BQU-01 |
Spearhead Point |
1 |
|
2 |
BQU-02 |
Detent Plunger |
1 |
|
3 |
BQU-03 |
Compression Spring |
1 |
|
4 |
BQU-04 |
Spring Pin 10×28 |
1 |
|
5 |
BQU-05 |
Spearhead Base |
1 |
|
6 |
BQU-06 |
Latch Retracting Case |
1 |
|
7 |
BQU-07 |
Spring Pin 10×40 |
2 |
|
8 |
BQU-08 |
3/8"-16UNC×3/4" Bolt |
1 |
|
9 |
BQU-09 |
Washer |
1 |
|
10 |
BQU-10 |
Latch Compression Spring |
1 |
|
11 |
BQU-11 |
Upper Latch Body |
1 |
|
12 |
BQU-12 |
Link |
2 |
|
13 |
BQU-13 |
Latch |
2 |
|
14 |
BQU-14 |
Spring Pin 10×32 |
1 |
|
15 |
BQU-15 |
Latch Body Coupler |
1 |
|
16 |
BQU-16 |
Pump-in Lip Seal |
2 |
|
17 |
BQU-17 |
Spindle of Pump-in Lip Seal |
1 |
|
18 |
BQU-18 |
Stainless Steel Ball φ22 |
1 |
|
19 |
BQU-19 |
Indicator Bushing |
1 |
|
20 |
BQU-20 |
Landing Shoulder |
1 |
|
21 |
BQU-21 |
Check Valve Body |
1 |
|
22 |
BQU-22 |
Washer7/8" Nord-Lock |
1 |
|
23 |
BQU-23 |
7/8"-9UNC Hex Nut |
1 |
|
24 |
BQU-24 |
Spindle |
1 |
|
25 |
BQU-25 |
Shut-off Valve Hard |
2 |
|
26 |
BQU-26 |
Valve Adjusting Washer |
2 |
|
27 |
BQU-27 |
Thrust Bearing |
1 |
|
28 |
BQU-28 |
Spindle Bushing |
1 |
|
29 |
BQU-29 |
Thrust Bearing |
1 |
|
30 |
BQU-30 |
Compression Spring |
1 |
|
31 |
BQU-31 |
5/8"-11UNC Lock Nut |
1 |
|
32 |
BQU-32 |
Inner Tube Cap |
1 |
|
33 |
BQU-33 |
Hydraulic Grease Fitting |
1 |
|
34 |
BQU-34 |
Stainless Steel Ball φ19 |
1 |
|
35 |
BQU-35 |
Check Valve Body |
1 |
|
36 |
BQU-36 |
InnerTube |
1 |
|
37 |
BQU-37 |
Stop Ring |
1 |
|
38 |
BQU-38 |
Core Lifter |
1 |
|
39 |
BQU-39 |
Core Lifter Case |
1 |
|
40 |
BQU-40 |
Locking Coupling |
1 |
|
41 |
BQU-41 |
Adaptor Coupling |
1 |
|
42 |
BQU-42 |
Landing Ring |
1 |
|
43 |
BQU-43 |
Outer Tube |
1 |
|
44 |
BQU-44 |
InnerTube Stabilizer |
1 |
|
45 |
BQU-45 |
Reaming Shell |
1 |
|
46 |
BQU-46 |
Diamond Core Bit |
1 |
|
 |
