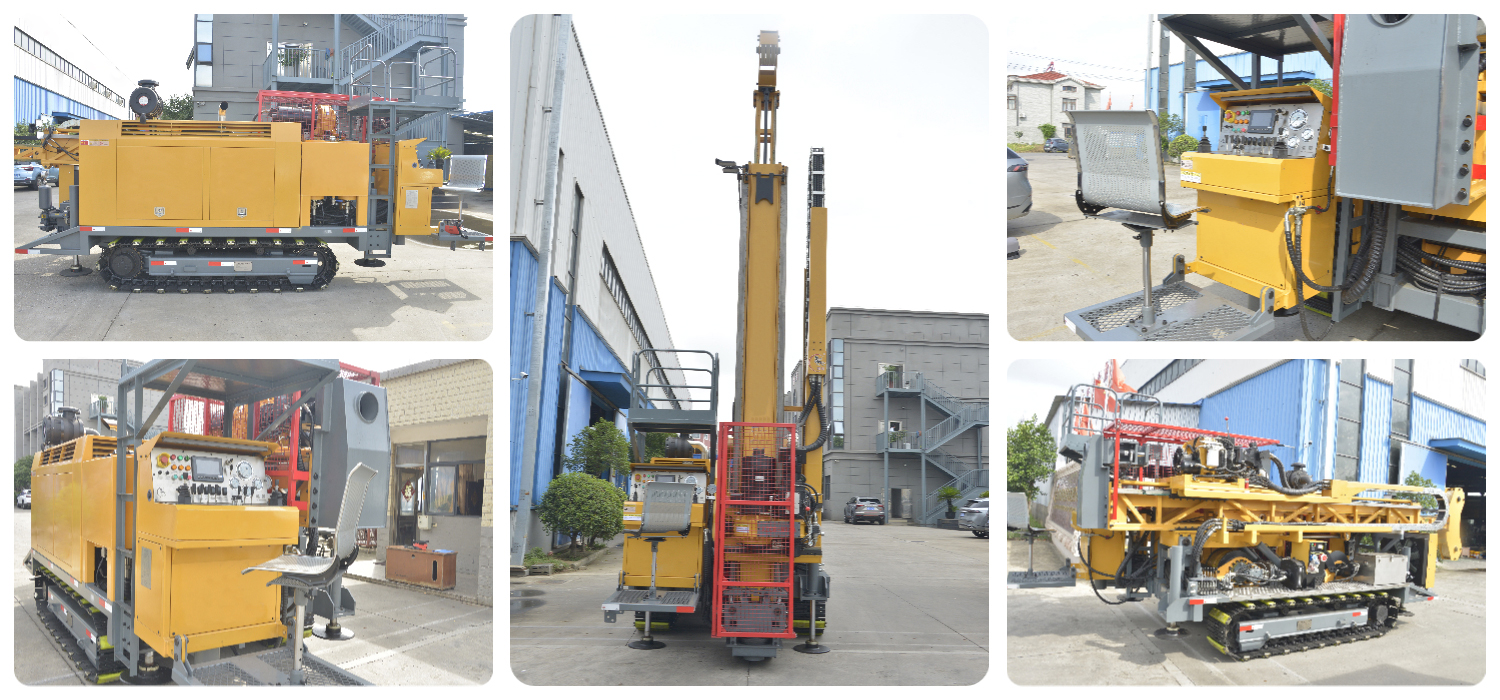

Fully Hydraulic Core Drill XZCR-N18A
| Drilling Rig Model | XZCR-N18A Core Drilling Rig | |
| Diesel Engine | Diesel Engine Model | Cummins QSB6.7-C240-30 |
| Displacement | 6.7L, 6-cylinder, National III Emission Standard | |
| Power | 180kW | |
| Maximum Speed | 2000rpm | |
| Drilling Capacity | Drill Pipe Specification | Drilling Depth |
| BQ | 2200m | |
| NQ | 1800m | |
| HQ | 1500m | |
| PQ | 1000m | |
| Hydraulic System | Rated Pressure of Main Pump | 31MPa |
| Rotary Head Capacity | Speed | 3-speed Stepless Variable Speed, 0-1250rpm |
| Maximum Torque | 7000Nm | |
| Spindle Through-hole Diameter | 125mm | |
| Maximum Lifting Force | 260kN | |
| Maximum Feeding Force | 112kN | |
| Main Winch Capacity | Lifting Force (Single Rope) | 120kN |
| Wire Rope Diameter | 20mm | |
| Lifting Speed | 45m/min | |
| Wire Rope Length | 50m | |
| Cable Winch Capacity | Lifting Force (Single Rope) | 16kN (Empty Drum) |
| Wire Rope Diameter | 6mm | |
| Lifting Speed | 110m/min | |
| Wire Rope Length | 2100m | |
| Mast | Total Mast Height | 10m |
| Mast Adjustment Angle | 0°~90° | |
| Drilling Angle | 45°~90° | |
| Feeding Stroke | 3700mm | |
| Mast Slip Stroke | 1120mm | |
| Others | Total Weight | 13T |
| Overall Dimensions | 6235×2230×2490mm | |
| Movement Mode | Crawler Self-propelled | |
| Climbing Capacity | 30° | |
| Travel Speed | 3.5km/h | |
| Mud Pump | Model | BWF-250BIV |
| Lower Clamp | Clamping Range | 55.5mm-118mm (Maximum Hole-opening Diameter: 165mm) |
