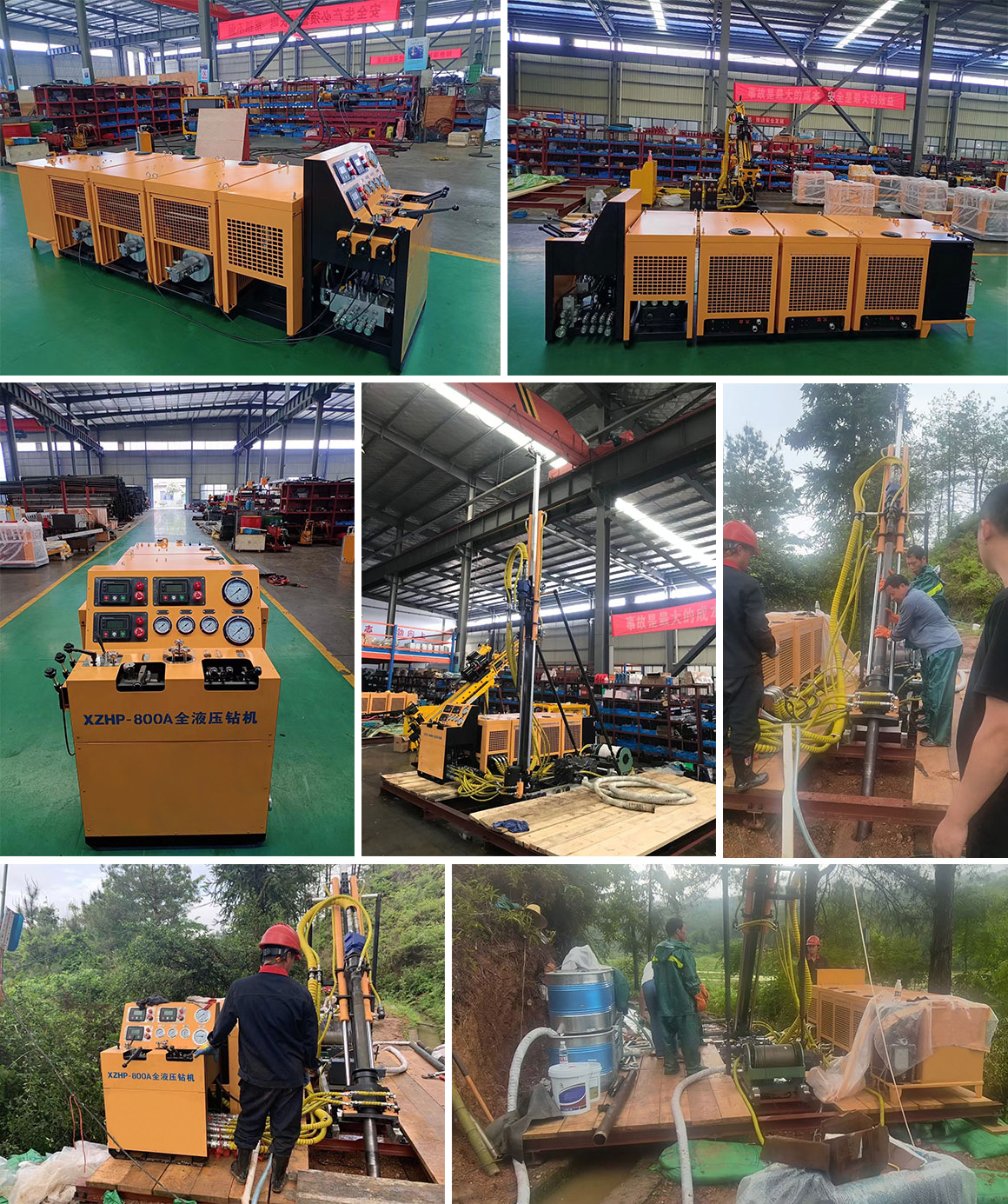

Main Features: Lightweight, reliable, and powerful. Easy to enter, high platform efficiency, fast relocation. Modular design, with the heaviest module weighing 260kg, can be easily transported by 4 people. Modular display of engine parameters, with equipment performance under full control. The highly integrated hydraulic system is oil-tight, with extremely low failure rates. The intuitive and simple operating system is easy to master. The main components are sourced from top international brands, featuring strong power, stability, and reliability. The mast-type drilling frame eliminates the need for a drilling tower and enables drilling at any angle from 30 to 90 degrees. Normally closed self-weight gripper, anti-drill runout, supports PQ drilling.
| Name | Parameter | |
| Drilling depth | BTW (59.56/42.1mm) | 800m |
| NTW (75.31/56.1mm) | 600m | |
| HTW (95.57/71.1mm) | 300m | |
| Adaptive drill rod length | 1.5m | |
| Core recovery length | 3m | |
| Drilling rig power | Kubota diesel engine V1505T 3×31.5kw/3000rpm | |
| Power head - top drive type | Maximum Torque | 700Nm |
| Maximum speed | 1800rpm | |
| Give a progress | 1.83m (driven by oil cylinder) | |
| Lifting force/feeding force | 60KN/30KN (single cylinder) | |
| Hydraulic winch | Average speed | 160m/min |
| Lift | 800kg | |
| Wire rope diameter | 8mm | |
| Wire rope capacity | 850m | |
| Feed beam and mast | Total height when the drill frame is at 90° | 5m |
| Penetration angle | 30°～90° | |
| Appearance and Weight | Machine area | 4m×4m |
| Tent area | 4.3m×4.3m | |
| Total weight / heaviest module | 3.2 tons / 260kg | |
| Supplier of important components | Diesel engine | Kubota - Imported from Japan with original packaging |
| Gear pump | Danfoss - Denmark | |
| Power head motor | Bormek - Germany | |
| Winch motor | Danfoss - Denmark | |
| Slurry pump | Elephant--China | |
| Hydraulic control valve | Parker - USA | |
| Hydraulic poppet valve | Sun--America | |
| Name |
Outline dimensions (transport dimensions) Length×Width×Height (mm) |
Quantity | Weight (kg) |
| Console | 790×560×1100 | 1 set | 190 |
|
Diesel generator set (Including engine oil coolant) |
950×605×882 | 3 set | 260×3=780 |
|
Fuel and electricity box (excluding diesel) |
890×520×860 | 1 set | 180 |
|
Hydraulic oil tank (excluding hydraulic oil) |
945×505×882 | 1 set | 165 |
| Slurry pump | 690×640×350 | 1 set | 175 |
|
Hydraulic winch (including 8mm steel wire rope, 850m) |
770×525×395 | 1 set | 215 |
|
Bed frame (including mast oil pipe, removable) |
2760×500×400 | 1 set |
300 (The heaviest component does not exceed 150) |
| Gripper | 390×240×400 | 1 set | 90 |
| Bottom frame | 4000×100×100 | 8 H-shaped steel beams | 68×8=544 |
| Tent components | 4300×700×300 | 1 set |
200 (The weight of the heaviest component does not exceed 20) |
| Plank | 4000×200×40 | 17 pieces | 16×17=272 |
| Pole support component | Φ55*900 | 1 set |
54 (The heaviest component does not exceed 7) |
| Total weight | 3165 |
