Introduction
If you're planning a mineral exploration drilling program, one of the first technical decisions you'll face is choosing between reverse circulation (RC) drilling and conventional core drilling. This choice affects everything from your sample quality to your per-meter drilling cost-and making the wrong call can derail an exploration budget.
Reverse circulation drilling and conventional core drilling each excel in different scenarios. RC drilling uses a dual-wall drill pipe system where drilling cuttings return through an inner tube, isolated from the annulus. Conventional core drilling uses a rotating core barrel that extracts intact rock core samples for analysis. Understanding the fundamental mechanical differences between these systems is essential for selecting the right method for your exploration objectives.
This guide provides a detailed technical comparison covering sample quality, drilling efficiency, depth capabilities, cost factors, and application suitability. By the end, you'll have a clear framework for making an evidence-based decision for your specific project.
What Is Reverse Circulation (RC) Drilling?
RC drilling is a percussion drilling method that uses a dual-wall drill string. Compressed air is injected down the annulus between the outer and inner tubes, carrying cuttings upward through the inner tube to the surface, where they are collected via a rotary splitter or bagging system. The key advantage is that samples travel through a closed inner tube, minimizing cross-contamination between lithological layers.
Key mechanical characteristics of RC drilling:
Sample transport: Airlift via dual-wall pipe; samples reach surface within seconds of being cut
Sample type: Drill cuttings (rock chips), not intact core
Drill pipe sizes: Typically 41/2" to 51/2" outer diameter for exploration-grade RC
Air consumption: High volumes at 900-1,800 psi compressor pressure
Sample splitting: Continuous or intermittent splitting for duplicate samples
Reverse circulation drilling originated in the mining industry for grade control and resource definition drilling where rapid, cost-effective sample collection was more important than preserving structural relationships in the rock.
What Is Conventional Core Drilling?
Core drilling (also called diamond drilling or rotary core drilling) uses a hollow drill string with a rotating core barrel equipped with a diamond-impregnated or carbide drill bit at the bottom. As the bit cuts rock, it preserves an intact cylindrical core sample that enters the core barrel for retrieval. Core samples are extracted at predetermined intervals using a core lifter or wireline retrieval system.
Key mechanical characteristics of core drilling:
Sample transport: Physical core barrel retrieval at drilling intervals
Sample type: Intact rock core (NX, BX, AX sizes standard)
Recovery goal: Near-100% core recovery for full lithological analysis
Drilling fluid: Water, mud, or foam for cooling and cuttings removal
Depth capacity: Wireline core barrels can retrieve core from 3,000+ meter depths
Diamond core drilling is the gold standard for geological interpretation because it preserves structural features, mineralization textures, vein orientations, and rock quality designation (RQD) measurements that drill cuttings simply cannot provide.
Direct Comparison: RC Drilling vs. Core Drilling
Sample Quality
RC drilling produces representative rock chip samples that accurately reflect the bulk chemical composition of the drilled interval. Because samples travel through the closed inner tube, contamination between successive lithological layers is minimal. However, fine-grained material can be lost to air carryover, andparticle-size bias exists-the finest fraction may not be captured.
Core drilling produces intact core samples where mineralogical relationships, textures, and structural features are fully preserved. This makes core drilling essential for:
Structural geology analysis (faults, folds, foliation)
Mineral texture and paragenesis studies
Rock Quality Designation (RQD) for engineering
Vein width and orientation measurements
Oriented core for structural interpretation
Winner for sample quality: Context-dependent. RC for geochemical representativeness; core drilling for geological detail.
Drilling Speed and Penetration Rates
RC drilling typically achieves penetration rates of 30-150 meters per shift in soft to intermediate rock formations (e.g., weathered granite, sedimentary cover). In hard rock, rates drop to 10-40 meters per shift depending on bit wear and air pressure.
Core drilling rates vary significantly by rock hardness and core size. In hard igneous or metamorphic rock, standard penetration rates range from 3-15 meters per shift for NX-sized core. Smaller diameters (AX) drill faster but yield less sample.
Typical penetration rate comparison:
|
Formation Type |
RC Drilling |
Core Drilling (NX) |
|
Overburden/Soft soil |
80-150 m/shift |
20-40 m/shift |
|
Weathered rock |
40-80 m/shift |
10-25 m/shift |
|
Intermediate rock |
20-50 m/shift |
5-15 m/shift |
|
Hard fresh rock |
10-30 m/shift |
2-8 m/shift |
Winner for drilling speed: RC drilling, by a significant margin in most formations.
Depth Capabilities
RC drilling is generally limited to 300-600 meter depths with standard equipment, though specialized deep RC rigs can reach 800-1,000 meters. Depth limitations stem from air pressure losses in the drill string and pipe integrity.
Core drilling depth capabilities depend on the rod size and rig capacity. Wireline diamond drilling routinely achieves 1,500-3,000+ meters with modern rigs. Specialized deep coring operations have exceeded 4,500 meters in scientific drilling projects.
Winner for depth: Core drilling, especially for deep exploration or scientific drilling programs.
Cost Efficiency
RC drilling costs typically range from $25-$80 per meter depending on hole depth, terrain, and contractor rates. The higher drilling speed means lower labor and equipment time costs per meter.
Core drilling costs range from $50-$250+ per meter for standard NX drilling, with costs escalating for smaller diameters, deeper holes, or challenging ground conditions. The slower penetration rate directly translates to higher per-meter costs.
Cost-per-meter breakdown by depth range:
|
Depth Range |
RC Cost/m |
Core Drilling Cost/m |
|
0-100m |
$25-45 |
$50-80 |
|
100-300m |
$35-65 |
$70-130 |
|
300-500m |
$50-80 |
$120-200 |
|
500m+ |
Generally not economical |
$180-250+ |
Winner for cost efficiency: RC drilling for shallow to medium-depth exploration where sample geochemistry is the primary objective.
Contamination and Sample Representativeness
RC drilling offers superior sample representativeness for geochemical analysis because:
The closed inner tube prevents annulus contamination
Samples reach the surface immediately, reducing oxidation effects
Continuous sampling allows close-spaced geological logging
Split samples provide duplicates for QA/QC protocols
Core drilling samples can experience contamination from drilling fluid infiltration and may show oxidation at depth boundaries. However, the intact sample allows geological features to be identified that would be invisible in RC chips.
Winner for geochemical representativeness: RC drilling.
Winner for geological interpretation: Core drilling.
Application Suitability: When to Use Each Method
Choose RC Drilling When:
Grade control drilling in operating mines requires rapid sample turnaround (24-48 hour assays)
Reconnaissance exploration across wide areas needs broad coverage at minimum cost
Porphyry and epithermal systems require closely-spaced geochemical sampling for ore body delineation
Regolith environments (laterite, saprolite) favor the faster RC penetration through weathered material
Budget is constrained and drilling meters-per-dollar is the primary optimization target
Contamination risk between lithological units must be minimized for accurate assays
Choose Core Drilling When:
Greenfield exploration requires establishing geological models and understanding ore controls
Structural analysis is needed (faults, folds, vein orientations)
Rock mechanical properties (RQD, uniaxial compressive strength) are required for mine design
Deep drilling (beyond 500m) is planned
resource definition requires detailed block model validation with high-confidence assays
Coal, iron ore, or banded formations where layered stratigraphy must be accurately mapped
Use Both Methods in Combination:
Most sophisticated exploration programs use a phased approach:
Phase 1 (RC): Reconnaissance drilling to define anomalous zones
Phase 2 (Core): Detailed delineation drilling in anomalous intercepts
Phase 3 (Core): Infill drilling for resource definition and geotechnical data
Key Takeaways
RC drilling uses a dual-wall airlift system to transport rock cuttings through a closed inner tube, delivering fast, contamination-minimized samples at 30-150 m/shift
Core drilling retrieves intact cylindrical rock core via a rotating core barrel with diamond bits, enabling detailed geological interpretation but at slower rates of 2-15 m/shift
RC drilling costs $25-$80/m vs. core drilling at $50-$250/m, making RC more cost-effective for shallow to medium-depth exploration where geochemistry is primary
Core drilling is essential for structural analysis, RQD measurements, and deep holes (1,500-3,000+ m capability), while RC excels in regolith and high-volume grade control drilling
A phased exploration program combining both methods typically delivers the best balance of cost efficiency and geological confidence
Conclusion
The choice between reverse circulation drilling and conventional core drilling is not binary-it is a strategic decision based on your exploration phase, geological objectives, budget, and timeline. RC drilling delivers superior cost efficiency and sample representativeness for geochemical grading in the right formations. Core drilling provides the intact sample quality required for structural interpretation, resource definition, and engineering parameters.
For most mineral exploration programs, the optimal approach is a phased combination: use RC for reconnaissance and targeting, transition to core drilling for delineation and resource definition. This strategy maximizes drilling efficiency while ensuring the geological confidence required for investment decisions.

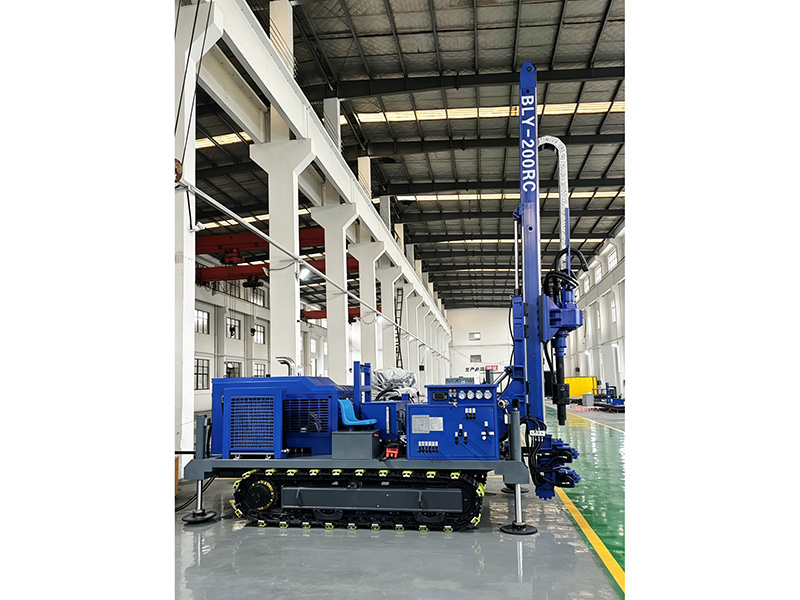

If your exploration program needs custom drilling solutions or technical consultation, contact Wuxi PolySource Geological Equipment Co., Ltd. We manufacture both RC drill rigs and full hydraulic core drilling equipment for global mineral exploration and mining applications.
