Introduction
The drilling fluid system is often called the "lifeblood" of a drilling operation, but this comparison undersells its actual complexity. Drilling fluid is a precision hydraulic engineering system that simultaneously controls multiple critical variables: hole cleaning, bit cooling, borehole stability, formation pressure balance, and sample quality. Get the hydraulic design wrong, and even the best drill rig and highest-quality drill bits will underperform.
In diamond core drilling, the fluid system must cool the diamond bit, clean the cuttings from the bit face, and transport those cuttings up the annulus-all without contaminating the core sample. In reverse circulation drilling, the air or foam system must provide sufficient velocity to lift cuttings from hundreds of meters depth while maintaining stable hole conditions. In unconsolidated formations, mud rheology must be carefully managed to prevent hole collapse.
This guide explains the hydraulic engineering principles underlying drilling fluid systems, provides practical fluid selection criteria, and covers hydraulic optimization for exploration drilling operations.
Drilling Fluid Functions: Beyond Just Flushing
Drilling fluid serves five primary functions simultaneously, each requiring specific hydraulic performance:
1. Hole Cleaning (Cuttings Transport)
The fluid must transport drill cuttings from the bit face to the surface, preventing cuttings accumulation at the bottom of the hole (which would lead to re-drilling, bit balling, or stuck pipe).
Transport mechanisms:
Carrying capacity: The fluid's ability to suspend and carry cuttings (controlled by viscosity)
Lift velocity: The upward velocity of the fluid in the annulus that physically carries cuttings
Gel strength: The thixotropic (shear-thinning) property that allows cuttings suspension when circulation stops
Key parameter - Annular Velocity: The upward velocity of fluid in the annulus (drill pipe outer diameter to borehole wall) is the primary driver of cuttings transport:
Annular Velocity (m/min) = Flow Rate (L/min) / Annular Cross-Sectional Area (m?2) x 1000
Minimum recommended annular velocities by drilling type:
|
Drilling Method |
Minimum Annular Velocity |
|
Diamond core drilling (water) |
0.3-0.6 m/min |
|
Diamond core drilling (mud) |
0.4-0.8 m/min |
|
RC drilling (air) |
15-25 m/min |
|
RC drilling (foam) |
10-20 m/min |
|
Air rotary drilling |
15-30 m/min |
Critical insight: RC and air rotary require dramatically higher annular velocities (15-30 m/min) because air has much lower density than liquid, providing far less carrying capacity per unit velocity. This is why RC requires large compressors delivering high volumes at pressure.
2. Bit Cooling
The drilling process converts mechanical energy to heat at the bit-rock interface. Without adequate cooling, diamond bits experience thermal damage:
Matrix degradation: The heat causes the metal matrix to lose hardness and release diamonds prematurely
Diamond graphitization: Extreme heat can transform diamond to graphite, destroying the cutting surface
Thermal expansion: Differential thermal expansion between diamonds and matrix causes diamond loss
Cooling requirements by bit type:
Diamond bits: Critical cooling requirement; thermal damage is the primary cause of premature failure
Tricone bits: Moderate cooling needed; bearing heat is the primary concern
PDC bits: Moderate cooling; thermal stability of PDC tables requires adequate flow
3. Borehole Pressure Control
The hydrostatic pressure of the drilling fluid column must balance formation pore pressure to prevent:
Wellbore instability: If fluid pressure is too low, formation rocks may fail and cave into the hole
Influx (kick): If fluid pressure is lower than formation pressure, formation fluids enter the hole (dangerous in extreme cases)
Lost circulation: If fluid pressure exceeds formation fracture pressure, fluid is lost into the formation
Hydrostatic pressure formula:
Hydrostatic Pressure (kPa) = Fluid Density (kg/m??) x Gravity (9.81 m/s?2) x Depth (m)
Practical example: Fresh water (density 1,000 kg/m??) provides 9.81 kPa/m of hydrostatic pressure. At 300m depth, hydrostatic pressure is ~2,943 kPa (43 psi). To increase pressure, increase fluid density using weighting agents (barite, hematite).
4. Core Quality Maintenance
In diamond core drilling, the fluid system must minimize core contamination and damage:
Core washing: High-velocity fluid jets at the bit face can erode soft or friable core
Core erosion: Turbulent flow around the core in the core barrel can erode the sample
Chemical attack: Some mud additives can chemically interact with core minerals
Solutions:
Use minimum practical flow rates that still achieve adequate bit cooling
Use foam or aerated mud in soft formations to reduce core erosion
Use double-tube core barrels where inner tube is isolated from drilling fluid
Use hole inclination control to reduce core turbulence
5. Lubrication
Drilling fluid reduces friction between the drill string and borehole wall:
Reduces torque requirements
Extends drill string and casing life
Reduces risk of differential sticking (pipe becomes stuck by mud filter cake against formation)
Lubricity additives: For challenging formations or extended reach wells, specialty lubricants (oil-based mud, synthetic-based mud, lubricating surfactant additives) reduce friction coefficients significantly.
Fluid System Selection by Application
Fresh Water (for Diamond Core Drilling)
When to use:
Competent, non-reactive formations
Core drilling where sample quality is paramount
Shallow to medium depths (<500m)
Operations where environmental concerns limit mud additives
Advantages:
Lowest cost
Simplest logistics (just treat tap water)
Core quality is maximized
Environmentally friendly
Limitations:
No formation pressure support (density 1,000 kg/m?? only)
Cannot control swelling in reactive clays
Limited cuttings carrying capacity if velocity is insufficient
Bentonite Mud (for Hole Stability)
When to use:
Unconsolidated formations (sand, gravel)
Fractured or vuggy formations prone to lost circulation
Reactive clay formations where swelling must be controlled
Where hydrostatic pressure must be increased (using barite)
Key additive: Bentonite (montmorillonite clay) forms a filter cake on borehole walls, reducing fluid loss into permeable formations. A good filter cake (thin, impermeable) is critical for borehole stability.
Air or Foam (for RC and Percussion Drilling)
When to use:
RC drilling where dry samples are required
Hard rock drilling where water is unavailable or undesirable
Underground conditions where minimal formation invasion is required
Percussion drilling where cuttings are coarse and easily transported
Air drilling parameters:
Minimum velocity: 15 m/min annular velocity for cutting transport
Compressor requirement: 500-1,500 cfm at 900-1,800 psi
Foam additive: Surfactant-based foaming agent (0.2-0.5% concentration) increases cuttings carrying capacity and reduces dust
Foam advantages over straight air:
5-10x greater cuttings carrying capacity per unit velocity
Dust suppression (critical in underground drilling)
Reduced air consumption (lower operating cost)
Better hole stability in fractured formations

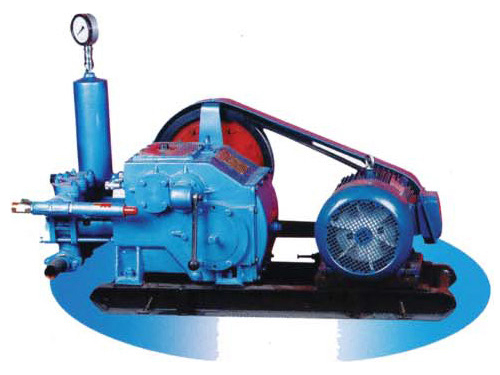

Hydraulic Optimization Principles
The Fundamental Hydraulic Equation
The total pressure requirement for a drilling fluid system is the sum of:
Total Pressure = Bit Pressure Drop + Annular Pressure Loss + Surface Line Loss + Safety Margin
Bit pressure drop: Pressure consumed at the bit/nozzle (critical for tricone and jet bits) Annular pressure loss: Friction losses in the annulus between drill string and borehole wall Surface line loss: Friction in standpipe, swivel, rotary hose, and kelly
Optimization goal: Allocate the available pump pressure between bit pressure drop (for cleaning) and annular pressure losses (for transport) to maximize drilling performance.
Optimization Rules of Thumb
For tricone and PDC bits: Allocate 50-60% of pump pressure to bit pressure drop for optimal jet impact and cleaning
For diamond core bits: Minimize pressure drop at the bit to reduce core disturbance; allocate most pressure to annular flow
For RC drilling: Prioritize flow rate over pressure; volume is everything for cutting transport
Flow Rate vs. Pressure Trade-off
Available pump power is finite. Optimizing the allocation between flow rate and pressure determines which function gets priority:
|
Priority |
When to Use |
Hydraulic Setting |
|
Flow rate first |
RC drilling, soft formations |
High flow, lower pressure |
|
Bit pressure first |
Hard rock tricone drilling |
High pressure, lower flow |
|
Balanced |
Mixed formations |
Moderate flow and pressure |
Common Hydraulic Problems and Solutions
Problem: Insufficient Hole Cleaning (Cuttings Accumulation)
Symptoms: Torque increases, penetration rate drops, cuttings appear at surface with delay (after expected travel time), re-drilling of cuttings.
Cause: Annular velocity too low; viscosity too high (impeding flow); cuttings too coarse for transport velocity.
Solution:
Increase flow rate (primary fix)
Reduce viscosity with water or viscosity reducer additive
Reduce pump output restrictions (check for blocked nozzles or lines)
Slow drilling rate to match hole cleaning capacity
Problem: Lost Circulation (Fluid Losses to Formation)
Symptoms: Fluid return volume at surface is less than pumped volume; mud pit level drops; possible cuttings accumulation if returns are reduced.
Cause: Drilling into fractured rock, vugs, coarse gravel, or high-permeability zones where formation pressure exceeds fracture pressure.
Solution:
Add lost circulation material (LCM) to mud (mica, cedar fiber, calcium carbonate)
Reduce pump pressure to lower equivalent circulating density (ECD)
Switch to air or foam drilling if feasible
Useite mud to build filter cake on fracture walls
Problem: Core Erosion (Poor Core Recovery)
Symptoms: Core recovery percentage is lower than expected; core appears washed or rounded; fine material missing from core.
Cause: Excessive hydraulic energy at bit face; turbulent flow in core barrel; improper core barrel selection.
Solution:
Reduce flow rate (lower annular velocity reduces jet impact on core)
Switch to double-tube core barrel with inner tube that does not rotate with outer barrel
Use foam instead of water (foam's compressibility reduces hydraulic impact)
Check that bit design is appropriate (streamlined nozzles, lower profile)
Key Takeaways
Drilling fluid serves five simultaneous functions: hole cleaning ( cuttings transport), bit cooling, borehole pressure control, core quality maintenance, and lubrication; hydraulic system design must balance all five
RC and air rotary drilling require 15-30 m/min annular velocity versus 0.3-0.8 m/min for core drilling with liquid-air's low density demands dramatically higher velocities to achieve equivalent cuttings carrying capacity
Bit cooling is most critical for diamond bits where thermal damage (matrix degradation, diamond graphitization) is the primary cause of premature failure; adequate flow rates (45-150 L/min for NQ/HQ) are non-negotiable
Lost circulation occurs when pump pressure exceeds formation fracture pressure; solutions include lost circulation materials (LCM), reducing pump pressure, and switching to air/foam
Core erosion in diamond drilling is minimized by reducing flow rate and using double-tube core barrels where the inner barrel is isolated from drilling fluid rotation
Conclusion
The
drilling fluid system is the hydraulic engine that determines whether your drilling operation achieves its potential or underperforms due to avoidable problems. Hole cleaning failures, bit overheating, borehole instability, and core quality degradation are all fundamentally hydraulic problems that have hydraulic solutions.
Understanding the basic hydraulic equations-annular velocity, hydrostatic pressure, pump pressure allocation-gives drilling supervisors the analytical tools to diagnose problems and optimize performance in real time. The difference between a well-managed fluid system and a poorly managed one can be 30-50% in penetration rate and 2-3x in cost-per-meter.
