Introduction
The drill bit is the single most critical consumable in any drilling program. It is the component that actually interacts with the rock, and its performance directly determines your penetration rate, sample quality, and cost-per-meter. Get the bit selection right, and your drilling program runs smoothly. Get it wrong, and you face glazed bits, premature failures, poor recovery, or simply the wrong sample type for your objectives.
Drill bit selection is often treated as a simple matter of "use a harder bit for harder rock," but the reality is considerably more nuanced. Formation hardness, abrasiveness, drill rig capability, hole depth, sample requirements, and budget all interact in ways that make optimal bit selection a genuine technical decision.
This guide provides a structured decision framework for selecting the right drill bit for exploration drilling applications, covering the three primary bit categories, selection criteria, and common mistakes to avoid.
The Three Primary Drill Bit Categories
1. Diamond Core Bits
Mechanism: A rotating core barrel with a diamond-impregnated or surface-set matrix crown cuts an annular ring around the rock, preserving an intact cylindrical core inside the barrel. Diamonds are embedded throughout the matrix (impregnated) or set on the crown surface (surface-set).
Best for: Hard and abrasive rock where intact core samples are required. The standard choice for all diamond core drilling in mineral exploration.
Key selection variables:
Diamond grit size (6-80 mesh; finer = slower but more consistent)
Matrix hardness (25-80 HRA; softer matrix for soft rock, harder for hard rock)
Crown profile (flat, semi-rounded, rounded)
Waterway design (spiral, radial)
Bit size (AQ through PQ standard)
2. Tricone Bits (Roller Cone Bits)
Mechanism: Three rotating cone assemblies with steel teeth or tungsten carbide inserts roll across the rock face, chipping and crushing the formation. Drilling fluid jets clean the bit face and lift cuttings.
Best for: Soft to medium-hard rock percussion drilling, blast hole drilling, water well drilling, and RC drilling in appropriate formations.
Key selection variables:
Tooth type (steel tooth for soft formations, tungsten carbide insert for medium to hard)
Cone/seal type (sealed bearing vs. open bearing vs. journal sealed)
Gauge protection (hardfacing, tungsten carbide buttons)
Jet nozzle configuration
3. PDC Bits (Polycrystalline Diamond Compact)
Mechanism: Fixed cutters with synthetic diamond tables bonded to tungsten carbide substrate shear the rock formation at low weight-on-bit. PDC bits are primarily used in oil and gas drilling but have applications in hard rock mineral exploration.
Best for: Medium to hard, non-abrasive formations where high penetration rates are desired and coring is not required.
Key limitation: PDC bits perform poorly in highly abrasive formations (silica-rich rock, conglomerates) where diamond cutters experience abrasive wear.
Formation Analysis: The Foundation of Bit Selection
Rock Classification for Drilling
Formation characterization for bit selection uses two parameters:
Hardness: Resistance to indentation or scratching. Measured by:
Mohs scale (qualitative; 1-10)
Uniaxial Compressive Strength (UCS, in MPa; quantitative)
Field penetrometer readings
Abrasiveness: Ability to wear away the bit. Affects bit life regardless of hardness. Measured by:
Silica content (higher SiO2 = more abrasive)
Cerchar Abrasivity Index (CAI; quantitative)
Formation Classification for Bit Selection
|
Formation Class |
UCS (MPa) |
Typical Lithology |
Recommended Bit Type |
|
Very soft |
<10 |
Clay, unconsolidated sediment |
Auger, drag bit |
|
Soft |
10-50 |
Shale, soft sandstone, coal |
Tricone (steel tooth), PDC |
|
Medium |
50-100 |
Hard shale, limestone, dolomite |
Tricone (TCI), PDC |
|
Hard |
100-250 |
Granite, basalt, gneiss |
Diamond core (impregnated) |
|
Very hard |
>250 |
Quartzite, chert, iron formation |
Diamond core (fine grit, hard matrix) |
Abrasiveness modifiers:
High silica content (>70% SiO2): Prefer harder matrix diamond bits; tricone bits suffer accelerated tooth wear
Clay-rich formations: Tricone bits risk balling; consider PDC or diamond bits
Carbonate formations: Less abrasive; tricone and diamond bits both perform well
Bit Selection Decision Framework
Define Your Primary Objective
|
Objective |
Sample Requirement |
Preferred Bit Type |
|
Geochemical assaying |
Representative rock chips |
RC tricone, RC diamond |
|
Geological interpretation |
Intact rock core |
Diamond core bit |
|
Grade control |
Bulk sample with grade |
RC drilling (any bit) |
|
Resource definition |
Core for structural analysis |
Diamond core bit |
|
Blast hole drilling |
No sample needed |
Tricone (large diameter) |
If you need core -> Diamond core bit is your only real option. If you need chips -> Tricone or PDC for RC/air rotary.
Assess Formation Hardness and Abrasiveness
For core drilling:
Hard rock (>100 MPa UCS): Use impregnated diamond bit, 40-60 mesh grit, medium to hard matrix
Very hard rock (>250 MPa UCS): Use fine grit (60-80 mesh), hard matrix, consider surface-set backup
Soft to medium rock: Consider polycrystalline diamond (PCD) or tungsten carbide core bits
For RC/percussion drilling:
Soft formations: Tricone steel tooth bits or PDC
Medium formations: Tricone tungsten carbide insert (TCI) bits
Hard formations: Diamond RC bits (impregnated matrix designed for percussion)
Very hard formations: Diamond RC bits, often with controlled feed rates
Evaluate Depth and Hole Diameter Requirements
Depth considerations:
Deep holes (>500m): Prioritize bit life over penetration rate; use harder matrix diamond bits
Shallow holes (<200m): Can tolerate more aggressive bit designs for higher ROP
Diameter considerations:
Larger diameters (PQ, HQ): More robust bit designs, more diamond/carbine per bit, typically longer life
Smaller diameters (AQ, NQ): More sensitive to parameter variations; more frequent bit changes may be needed

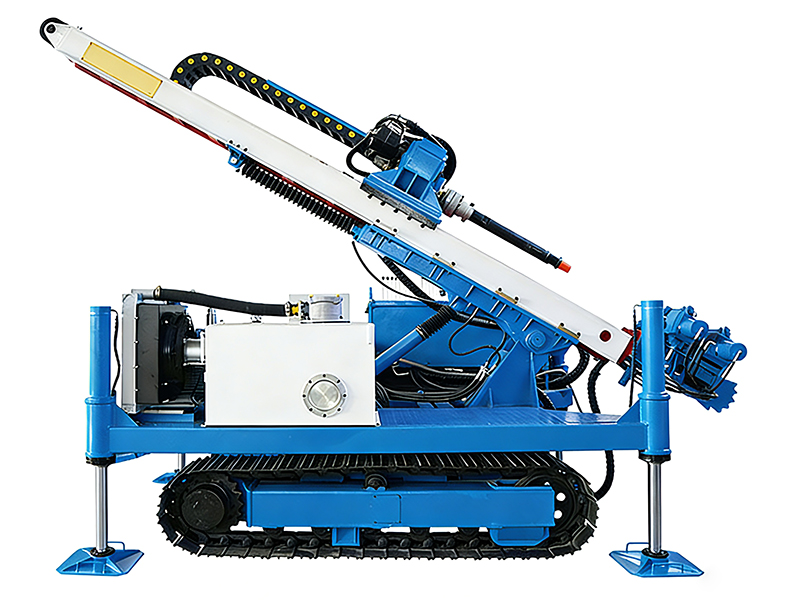

Consider Rig Capability
Bit selection must match your rig's capability:
WOB capacity: Hard formations require higher WOB; ensure your rig can deliver it
RPM range: Diamond bits typically require 600-1,500 RPM; tricone bits 60-300 RPM
Hydraulic flow: Ensure flushing is adequate for bit size and formation
Mismatch consequences:
Using a tricone bit at too-high RPM -> accelerated bearing failure
Using a diamond bit at too-low RPM -> matrix glazing from insufficient matrix wear
Using a diamond bit at insufficient hydraulic flow -> thermal damage to matrix
Bit Selection by Application
Mineral Exploration Core Drilling
Standard approach: Impregnated diamond bit, 40-60 mesh grit, matrix hardness matched to rock
Starting recommendation: Medium matrix (45-55 HRA) for unknown formations; adjust based on first-run performance
If bit glazes (no penetration): Switch to 1-2 grades softer matrix
If bit wears rapidly (short footage): Switch to 1-2 grades harder matrix
RC Grade Control Drilling
Standard approach: Tungsten carbide insert (TCI) tricone bit for most formations
Soft, non-abrasive formations: PDC or steel tooth tricone
Hard, abrasive formations: Matrix diamond RC bit (designed for percussion)
Mixed formations: TCI tricone handles transitions better than specialized bits
Blast Hole Drilling
Standard approach: TCI tricone bit (typically 61/2"-121/2" diameter)
Soft formations: Steel tooth tricone, large jet nozzles for fast penetration
Medium formations: TCI bit, appropriate insert size for rock hardness
Production efficiency focus: Bit cost is secondary to ROP and footage per bit
Common Mistakes in Drill Bit Selection
Using Hard Matrix Bits in Soft Rock
The error: Selecting hard matrix diamond bits (65-80 HRA) for medium or soft formations because "we want the bit to last."
The consequence: The hard matrix doesn't wear fast enough. Exposed diamonds become glazed (polished) and lose cutting ability. Penetration rate drops to near zero. The bit may drill only 5-10 meters before requiring replacement.
The fix: In soft formations, use softer matrix bits (35-45 HRA). The softer matrix wears faster but continuously exposes fresh diamonds, maintaining cutting efficiency.
Selecting Tricone Bits Based on Price Alone
The error: Choosing the cheapest tricone bit available regardless of insert size, seal type, and gauge protection.
The consequence: Sealed bearing bits in abrasive formations experience rapid bearing failure. Wrong insert sizing causes premature tooth breakage. Poor gauge protection leads to rapid OD wear and stuckreamers.
The fix: Match bit selection to formation. In abrasive formations, pay for journal sealed bearings and enhanced gauge protection. The 30% higher bit cost often delivers 3x the footage.
Ignoring Hydraulic Flow Requirements
The error: Operating diamond bits at insufficient hydraulic flow to save on compressor/pump costs.
The consequence: Insufficient coolant and cuttings removal causes thermal damage to the diamond and matrix. Bit life drops by 50% or more. Glazing occurs from localized overheating.
The fix: Always meet minimum hydraulic requirements for the bit size. The cost of additional compressor capacity is far less than the cost of premature bit failure.
Using the Same Bit Across Formation Changes
The error: Continuing to use a bit optimized for one formation through a lithological boundary into different rock type.
The consequence: Bit performance is suboptimal in the new formation. May cause damage (too-soft bit in hard rock) or failure (too-hard bit glazing in soft rock).
The fix: Plan for bit changes at known or anticipated formation boundaries. Have appropriate backup bits ready before entering a new formation.
Key Takeaways
Drill bit selection is the highest-leverage consumable decision in exploration drilling; one wrong choice can double cost-per-meter or deliver unusable samples
For core drilling, only diamond core bits (impregnated or surface-set) provide intact rock samples; tricone and PDC bits cannot core and are inappropriate for geological drilling requiring core
Formation characterization requires assessing both hardness (UCS in MPa) and abrasiveness (silica content, Cerchar Abrasivity Index); hard and abrasive are different variables that must both be considered
Matrix hardness in diamond bits must be softer than the formation-soft matrix (35-45 HRA) for soft rock, hard matrix (55-65 HRA) for hard rock; hard matrix in soft rock causes glazing, soft matrix in hard rock causes rapid overwear
Tricone bit selection should prioritize insert sizing and seal/gauge type over price; journal sealed bearings and TCI inserts in abrasive formations deliver significantly better footage than budget alternatives
Conclusion
Drill bit selection is a technical decision that deserves the same analytical rigor as any other exploration program variable. The cost of the bit itself is often a small fraction of the total drilling cost-the real cost is in the trip time to replace a failed bit, the cost of drilling with an inappropriate bit, and the consequence of delivering unusable samples.
A systematic approach-defining objectives, characterizing formations, matching bit type to objectives, and planning for formation changes-will consistently outperform the common approach of defaulting to whatever bit is cheapest or most familiar.
